Description

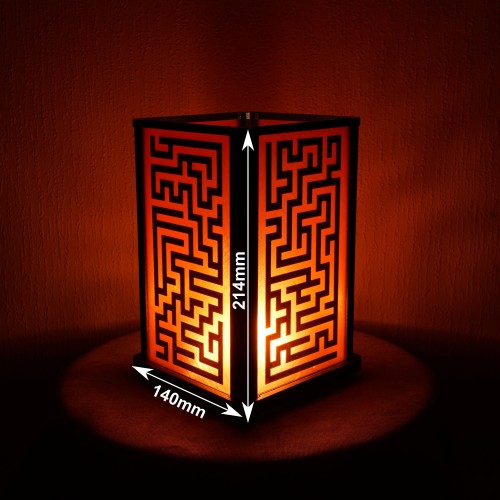

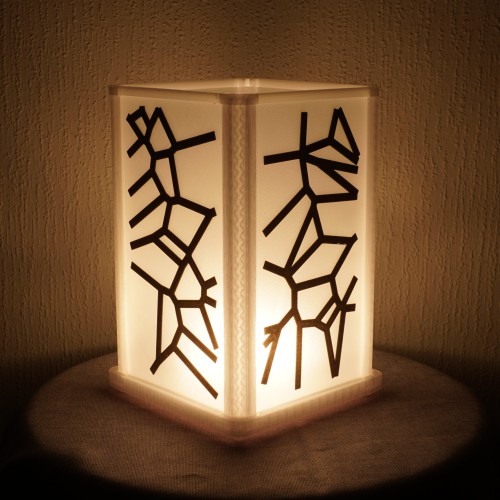

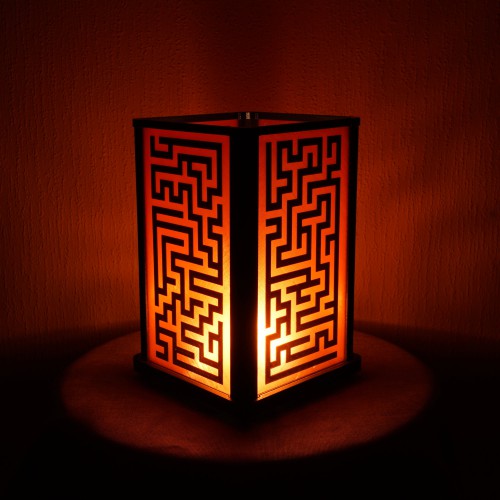

Tealight holder lantern, with exchangeable side panels. Maze and Voronoi patterns are available, it is also possible to add your own pattern.

Printing Details
It is a lightweight design that requires a well-calibrated printer. I recommend the use of a 3D printing adhesive.

How to do

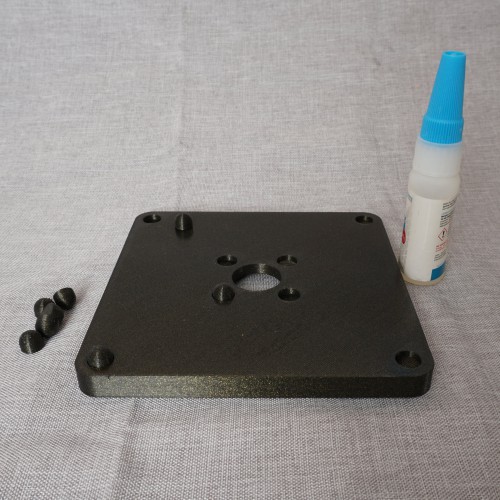

  • print the base and glue the feet under it,
    you need eight feet

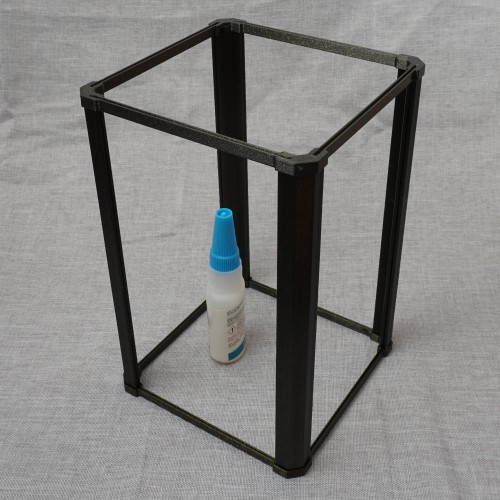

  • print the bottom and top frame,
    print the support, you need four,
    glue it together, don't use to much glue
  • print the panels, you need four
  • the side panels slide into the frame from above
  • don't glue the side panels, they stay in place by themselves
  • put the frame on the base, don't glue it
Tealight lantern
Tealight lantern
Tealight lantern

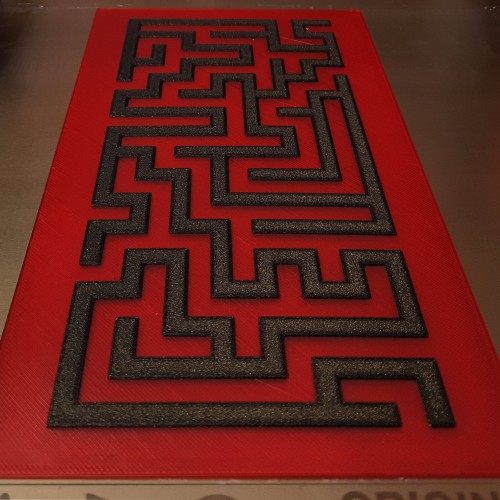

How to print the side panels

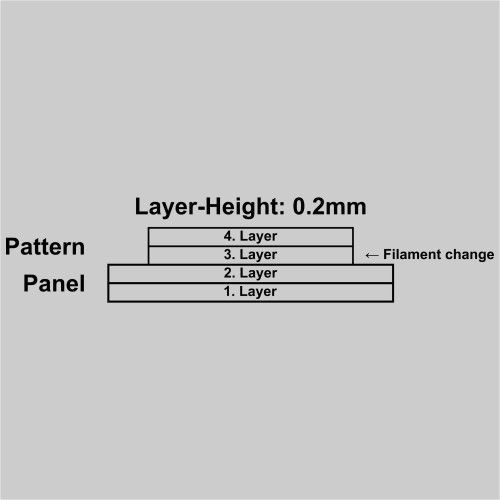

  • I recommend a layer height of 0.2mm
  • with a layer height of 0.2mm, the side panel consists of four layers
  • two layers panel and two layers pattern
  • you can print it by changing the filament at 0.6mm (recommended)
  • or you do a multi material print (recommended)
  • or you print it as one piece and paint the pattern
  • there is also an blank side panel, you can apply your own pattern there
Tealight lantern

Object parts (4.5MB)

  • base.stl
  • foot.stl
  • frame bottom.stl
  • frame top.stl
  • panel blank.stl
  • panel maze 1.stl
  • panel maze 2.stl
  • panel maze 3.stl
  • panel maze 4.stl
  • panel voronoi 1.stl
  • panel voronoi 2.stl
  • panel voronoi 3.stl
  • panel voronoi 4.stl
  • support.stl
Tealight lantern
Tealight lantern

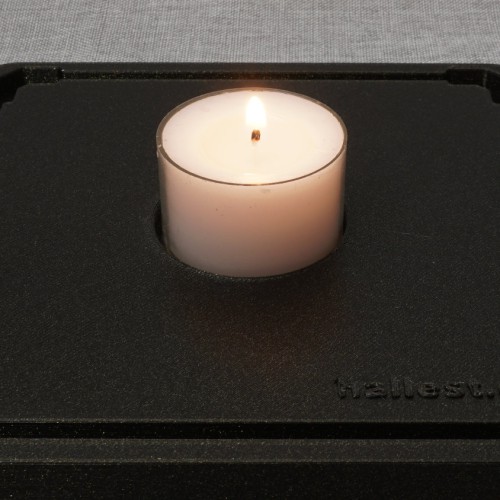

Safety instructions
  • Do not leave the lantern alone when using real tealights
  • Do not use too large tealights (30mm > ⌀ < 40mm)
  • The lantern has been tested with real tealights, but should you still have the feeling that the lantern does not tolerate the heat of the candle, then extinguish the candle immediately, use led's instead
Tealight lantern

Tags
tealight holder candle voronoi maze machiya shōji
